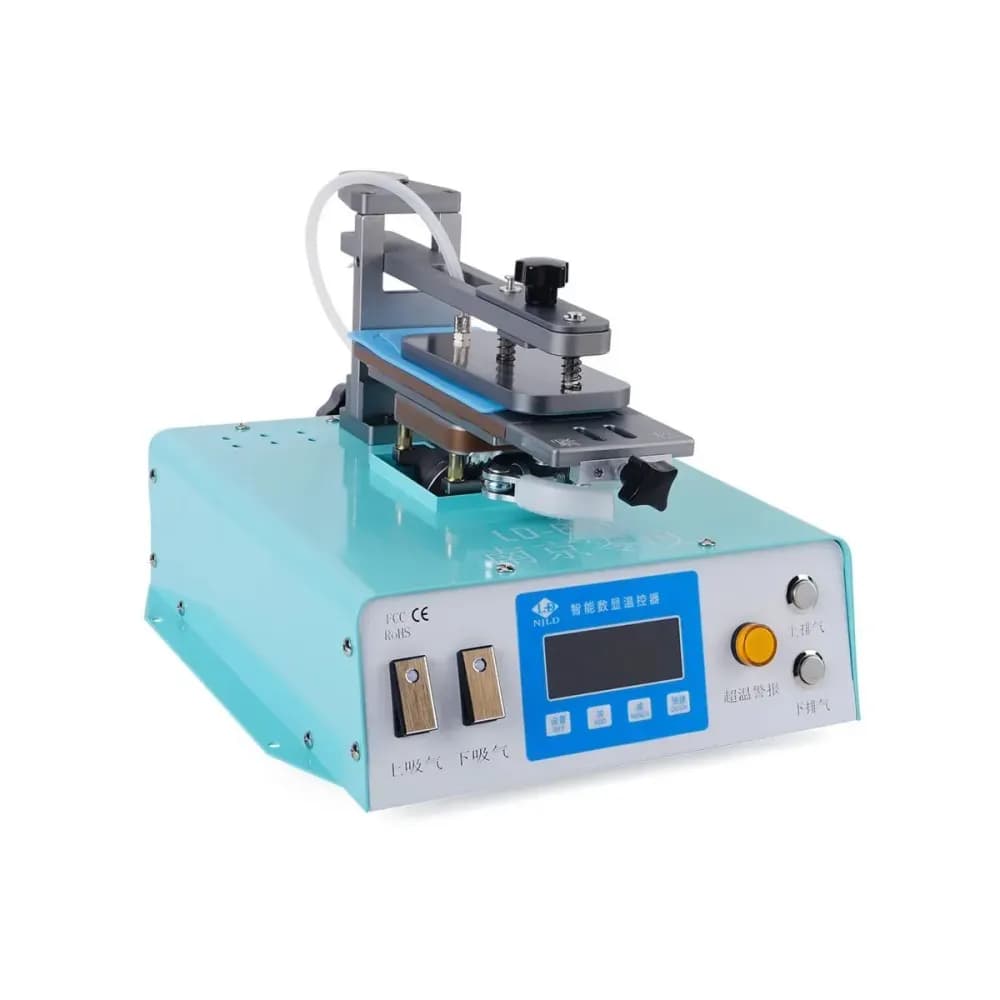

NJLD LD-680 Screen Preheating and Separation Machine

Separating a broken glass lens from an OLED or LCD panel needs even heat and a firm hold. The NJLD LD-680 combines a hot plate that rotates 360 degrees with two vacuum pumps that hold the screen down.

The listing describes adjustable, fast heating, an overheat alarm and safety relay, and support for flat and curved screens, separating both glass and frame. It weighs about 7.2 kg and comes with EU or UK 220 V or US 110 V plugs.

Screens it handles

• A cracked front glass on an otherwise working OLED.

• Curved-edge Samsung displays with shattered glass.

• A frame that is bent and needs separating from the panel.

• Old adhesive that won't release at room temperature.

Working safely

Let the plate reach temperature before mounting the screen, and check the vacuum holds before cutting. Rotate the plate rather than reaching around the panel. Use cutting wire, not force, to separate the glass. Keep the plate clean of old glue and glass fragments, since debris under a panel breaks the vacuum seal and can crack the OLED.

The LD-680 suits shops and refurbishing centers that separate screens regularly.
