DJI Mini 5 Pro ESC Flat Cable

$9.53

per unit

Volume pricing
Quantity	Unit price	Saving
	$9.53
	$9.05	−5%
	$8.58	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

DJI Mini 5 Pro

Details

Motor errors on a nearly new Mini 5 Pro are alarming, but when they follow a crash or a first repair, the cause is often this low-cost ribbon rather than the ESC board or mainboard it connects.

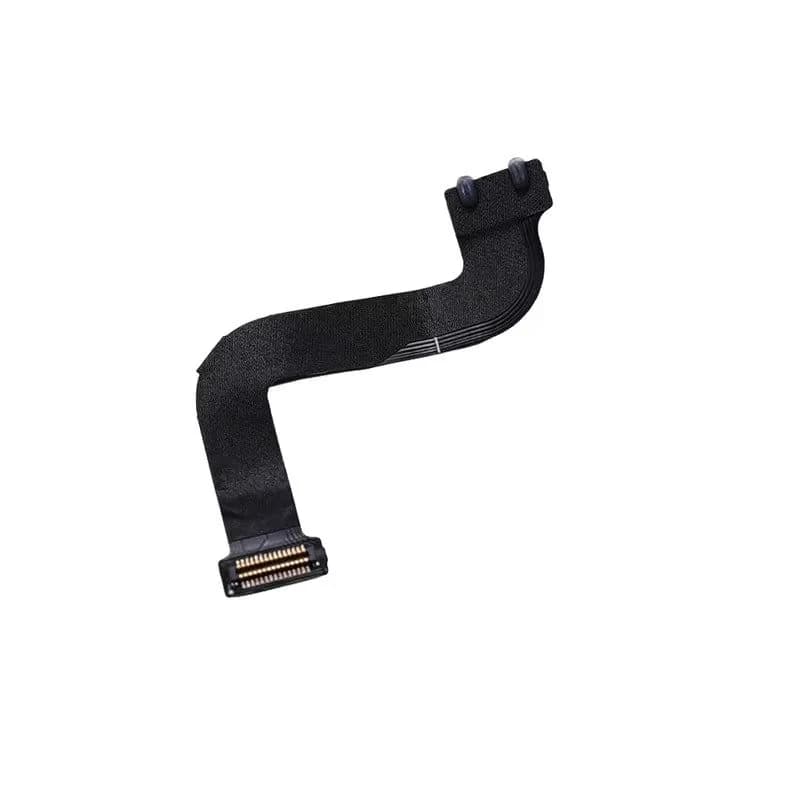

This ESC flat cable carries power and signals between the ESC board and the mainboard of the DJI Mini 5 Pro. It's offered as aftermarket because the maker isn't stated.

Symptoms of a damaged Mini 5 Pro ESC ribbon

Motor errors, motors cutting in and out, intermittent power and connection failures that started after the drone was opened all point to it. A crease or torn trace is often visible once the shell is off.

Fitting and testing

Remove the battery, release each connector straight up with a plastic tool and seat the new cable evenly at both ends. Route it flat so the shell can't pinch it. Run the motors without propellers, then hover low over soft ground before a normal flight, since a loose power connection can cut a motor in the air.

If the drone is still under warranty or DJI Care Refresh, check that coverage before opening it. Out of warranty, this cable is the cheapest first step for Mini 5 Pro motor errors.
