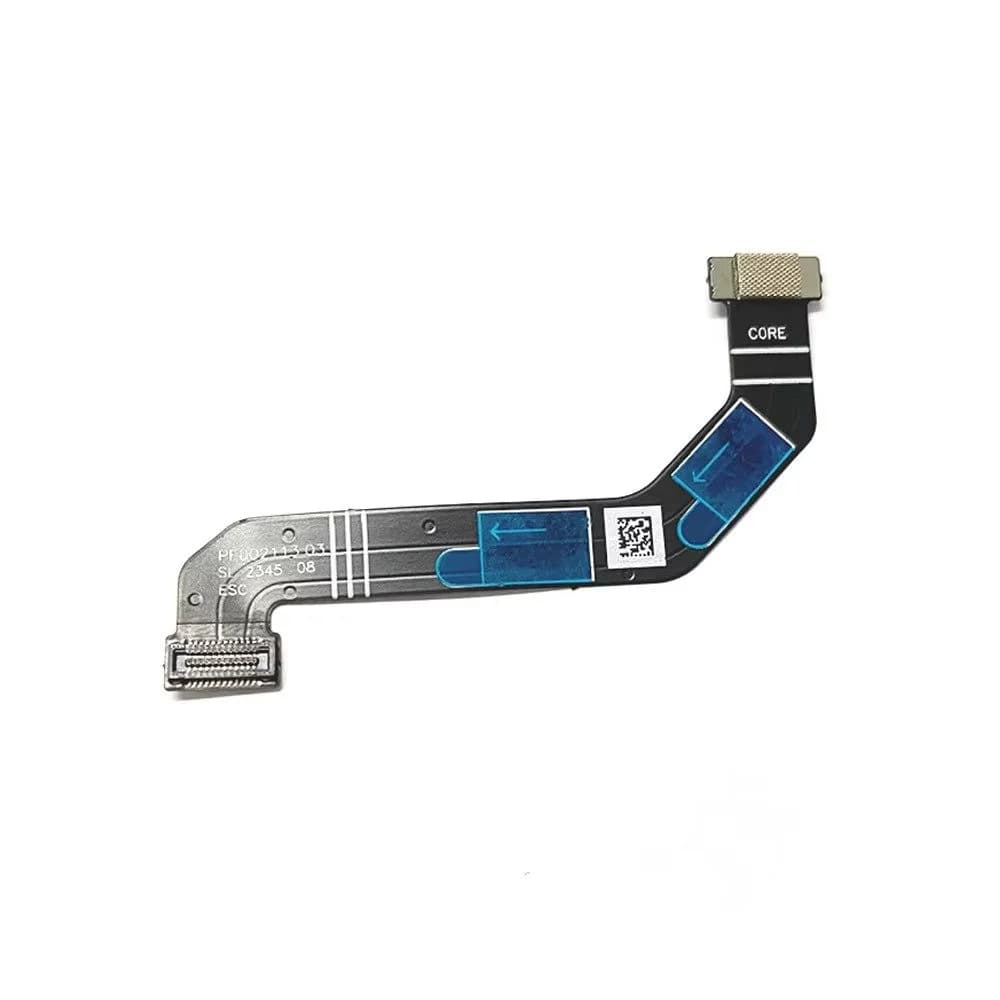

DJI Mini 4 Pro ESC Board Cable

$5.86

per unit

Volume pricing
Quantity	Unit price	Saving
	$5.86
	$5.57	−5%
	$5.27	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

DJI Mini 4 Pro

Details

On the Mini 4 Pro, the ESC board and the core motherboard talk through a single flexible flat cable. If it's creased during a repair or torn in a crash, the motors can stop responding, stutter, or report communication errors, even though both boards are fine.

This ESC board cable is listed for the DJI Mini 4 Pro, linking the ESC board to the core motherboard. No maker is named, so it's an aftermarket part.

Mini 4 Pro faults pointing to the ESC cable

Motor malfunctions, ESC communication errors and intermittent power delivery, particularly after the drone has been opened, are the classic signs. A cable that looks creased or has a scorched contact confirms it.

Install and test safely

Disconnect the battery, lift each connector with a plastic tool and seat the new cable evenly at both ends. Since this link controls the motors, a poor connection can cause a cut-out in flight. Run the motors without propellers, then hover low over soft ground before a normal flight.

It's an inexpensive part, so it's worth ruling out before ordering an ESC board or motherboard. Keep a spare in the repair kit if you service several Mini 4 Pros.

Specifications

Compatible devices	DJI Mini 4 Pro
Part type	ESC board flat cable
Connects	ESC board to core motherboard (per listing)
Quality	Aftermarket (DJI origin not stated)
