DJI Mini 4 Pro Gimbal Roll Motor

$16.42

per unit

Volume pricing
Quantity	Unit price	Saving
	$16.42
	$15.60	−5%
	$14.78	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

DJI Mini 4 Pro

Details

A Mini 4 Pro that films every clip with a slight lean, even after calibration, usually has a problem on the roll axis. The roll motor keeps the camera level as the drone banks and tilts in the wind; when it's damaged, the horizon tilts, wobbles or drifts.

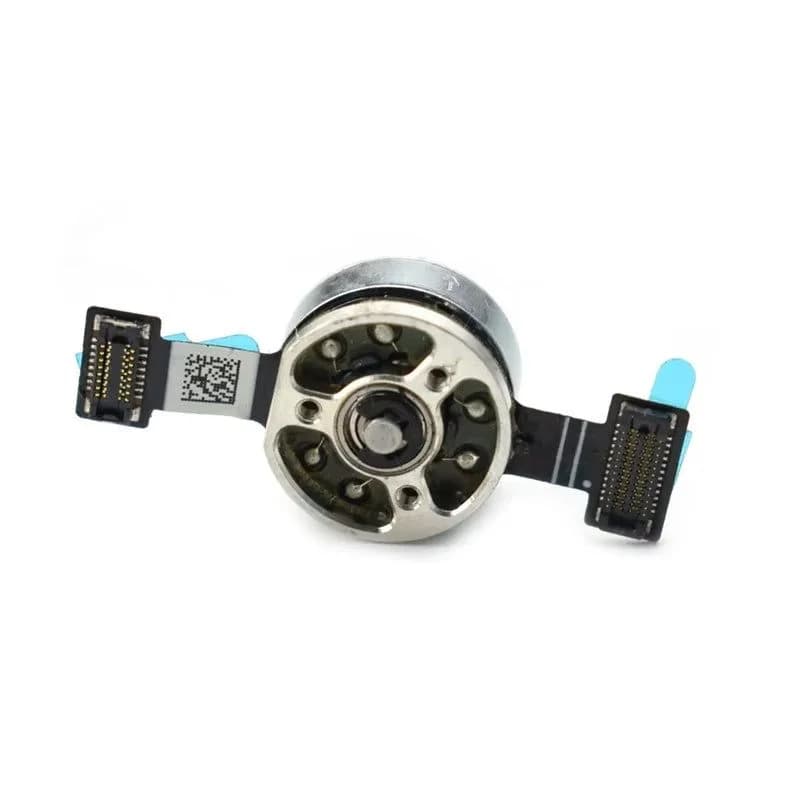

This gimbal roll (R-axis) motor is listed for the DJI Mini 4 Pro. The listing mentions original specifications but no maker, so we sell it as aftermarket.

When the Mini 4 Pro roll motor is the culprit

A horizon that leans in every clip.
Side-to-side wobble during flight.
Roll or motor overload errors after a crash.

Checks before ordering:

Calibrate the gimbal on a level surface.
Try the horizon adjustment in DJI Fly; if it can't correct the tilt, suspect hardware.
Inspect the roll arm lower bracket for bends, which cause the same symptom.
With the drone off, feel the roll axis for grit or stiffness.

Fitting the motor

Work over a tray and keep the thin flex cables free of strain. Keep the lens covered while the gimbal is apart.

Calibrate again after fitting and film test clips in both horizontal and vertical modes, checking the horizon in each. The roll arm lower bracket is sold separately, and it's a much cheaper part to replace if the bracket turns out to be bent.
