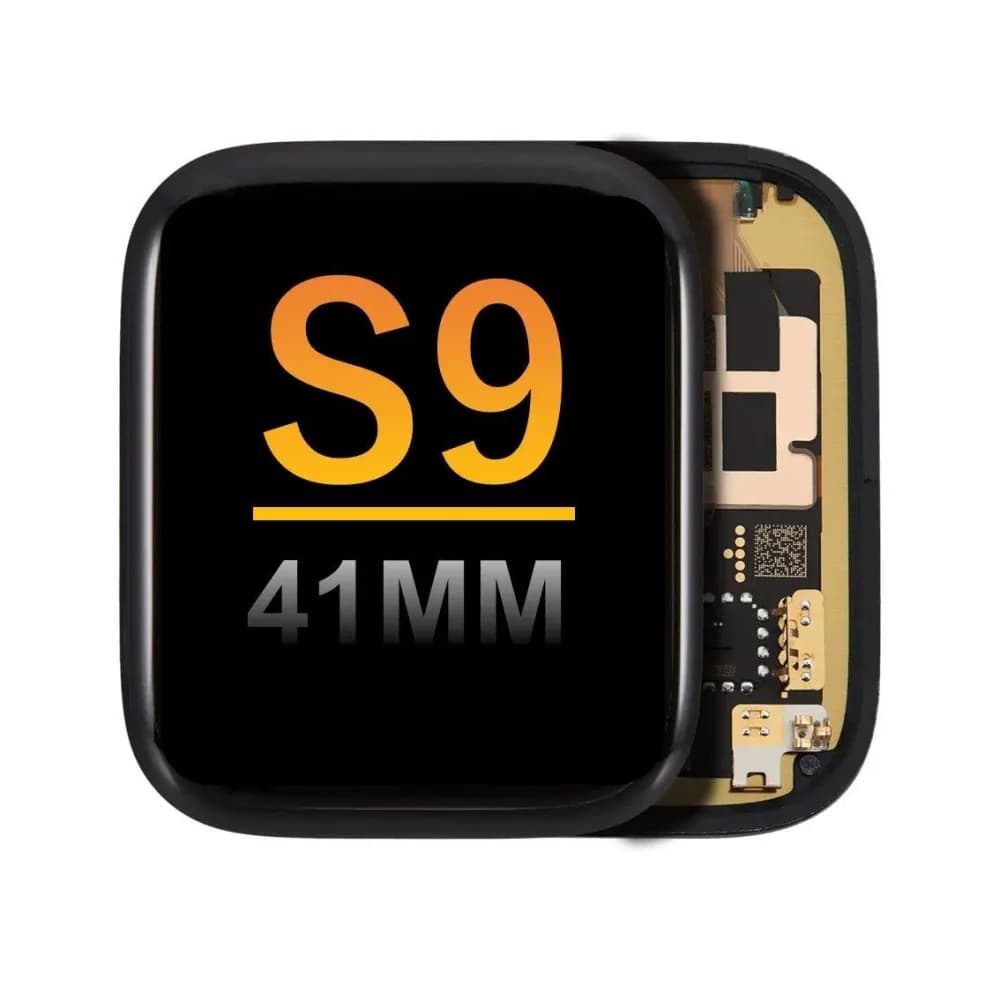

Apple Watch Series 9 (41mm) OLED Display Screen Assembly
Apple · SKU AW00081 · Fits 1 model
$77.99
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $77.99 | ||
| $74.09 | −5% | |
| $70.19 | −10% |
Selected SKU AW00081
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- Shipping & returns
- Ask about fit before ordering
Shipping weight 0.05 kg
Compatible with 1 model
Match the model number printed on the device (Settings → About, or on the back) before ordering.
- Apple Watch Series 9A2978, A2980, A2982, A2983, A2984, A2985, A2622, A2684, A2859
Details
The Series 9 brought the double tap gesture and a display bright enough to read in full sun. Both rely on the screen: tap your finger and thumb together to answer a call, and nothing useful happens if the face is cracked through or dark.
This OLED display screen assembly fits the 41mm Series 9. It's OEM Pull, an Apple display recovered from a donor watch.
How a 41mm Series 9 screen fails
Cracks that start at a corner and spread across the face.
A black screen while the watch still buzzes for notifications.
Touch that misses taps or registers ghost touches.
Lines or blotches after a knock.
A display that has lifted without cracking usually has a swollen battery behind it, so have the battery checked before fitting a new screen on top.
Fitting notes for the 41mm Series 9
Check the size on the back first; the 45mm screen is larger and won't fit. The display is bonded in and joined by fine cables, so warm the edge gently, use a thin blade, and lift only as far as the cables allow. Disconnect the battery before the display and test the new panel, including brightness and touch, before sealing with fresh adhesive.
Once it's sealed, the 41mm Series 9 is bright and responsive again, and double tap has a face to work with.
Specifications
| Compatible devices | Apple Watch Series 9 |
|---|---|
| Case size | 41 mm |
| Part type | OLED display screen assembly |
| Quality | OEM Pull (original, used) |
Questions
What is an OEM Pull screen?
An Apple display removed from a working donor watch. It may show light signs of previous use.
How do I check the case size?
Look at the engraving on the back of the watch. This screen fits the 41mm case.
Does it fit the Series 8?
The Series 8 has its own listing. Pick the screen for your exact series and size.
