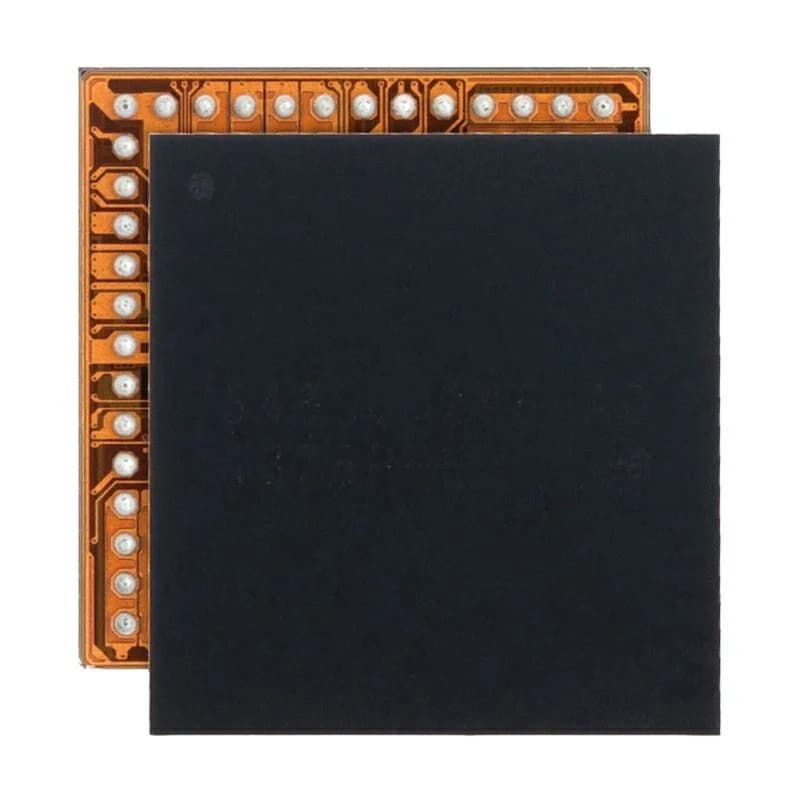

343S00286-A0 Power Management IC for iPad mini 5 (2019)

$6.63

per unit

Volume pricing
Quantity	Unit price	Saving
	$6.63
	$6.30	−5%
	$5.97	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.01 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

iPad mini 5A2133, A2124, A2126, A2125

Details

Next to its large main PMIC, the iPad mini 5 uses a smaller 182-pin Apple power chip. If that one fails, the mini can stay dead or lose a rail for a single function, and it's easy to misdiagnose as a main PMIC fault.

This listing sells the Apple 343S00286-A0 power management IC for the iPad mini 5 (A2133, A2124, A2126, A2125). The listing gives its pin count as 182.

Clues that point to this chip

A mini that stays off although the main PMIC rails measure fine.
A missing rail that this chip supplies.
A short on its supply traced to the chip.
Liquid damage nearby.

Diagnose before you heat

Measure the rails of both power chips. If the main PMIC's are present and this chip's are missing with good inputs, you can skip the bigger, riskier BGA job. The mini's board is compact, so shield the nearby parts during rework.

Fit with a preheater and fresh flux, check the rails, and test boot, touch and charging before closing the mini. Its small screen is fragile, so take care when reattaching it.

Specifications

Condition	New
Part type	Power management IC
Part number	343S00286-A0
Pin count	182
Compatible devices	iPad mini 5 (2019)
Model numbers	A2133, A2124, A2126, A2125
