Soldering Stations & Irons
In stock
1 / 8
Tool

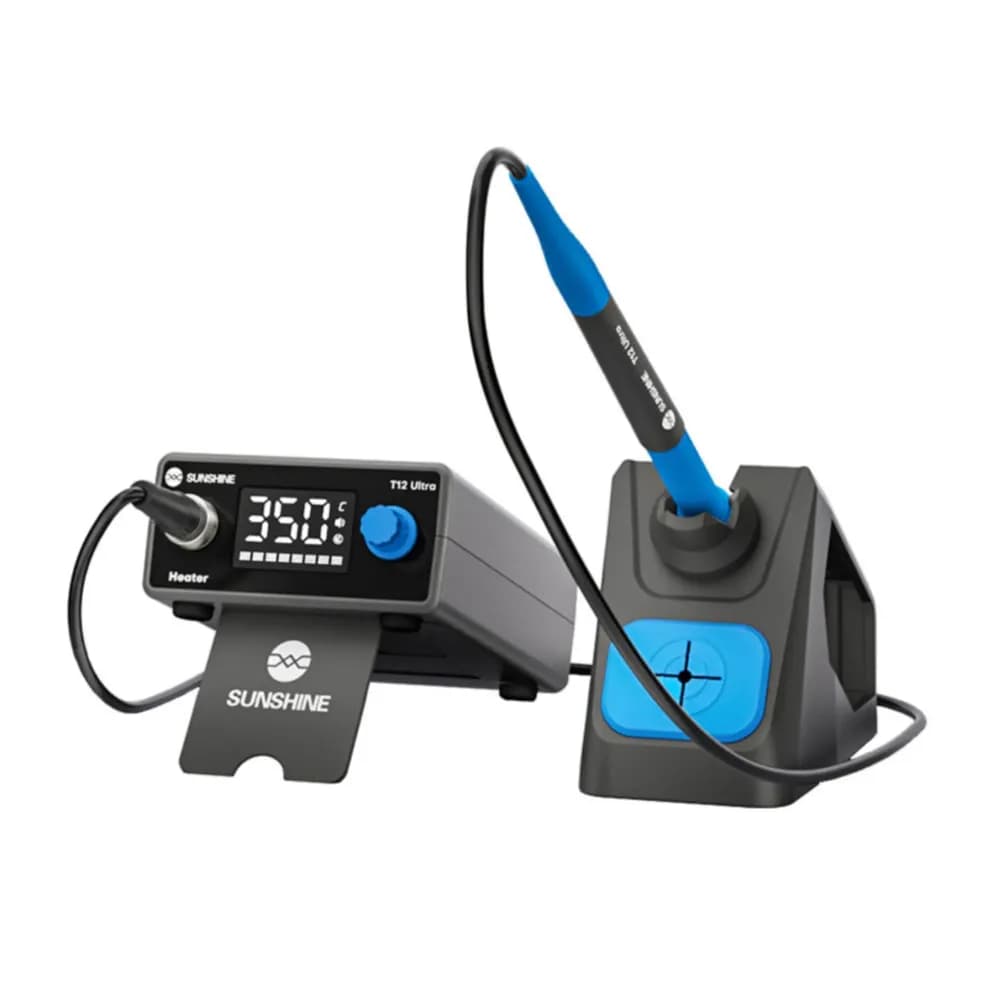

SUNSHINE T12 Ultra Soldering Station
SUNSHINE · SKU SS10098
$26.05
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $26.05 | ||
| $24.75 | −5% | |
| $23.45 | −10% |
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- Shipping & returns
- Ask about fit before ordering
Shipping weight 0.8 kg
Details
Hours bent over a flat station display add up to a stiff neck. The SUNSHINE T12 Ultra sits on an adjustable stand that tilts the unit up by 30°, and its 75 W output drives T12 tips with integrated heating cores.
It runs on AC 110 to 240 V at 50/60 Hz and adjusts from 100 to 480°C in 5°C steps, with ±1°C accuracy and stability. Heat-up takes about 2 to 3 seconds. A digital display, calibration, standby and sleep from off to 120 minutes are included. It works from 0 to 40°C below 80% humidity. The main unit is about 91 x 160 x 46.5 mm, and the anti-static stand, about 59.5 x 125 x 90 mm, includes tip cleaning and storage.
When it helps
Damaged connectors needing quick recovery.
Shorted parts on ground planes.
Tips worn by idle heat.
Neck strain on long shifts.
Tips
Calibrate after each tip change and set a short sleep time.
T12 tips come in many shapes, so stock a few for different jobs.
Specifications
| Brand | SUNSHINE |
|---|---|
| Model | T12 Ultra |
| Condition | New |
| Product type | Constant-temperature soldering station |
| Power | 75 W |
| Input voltage | AC 110-240 V, 50/60 Hz |
| Temperature range | 100-480 °C |
| Accuracy / stability | ±1 °C |
| Adjustment step | 5 °C |
| Heat-up time | Approx. 2-3 s |
| Tips | T12 series |
| Sleep | Off-120 min |
| Calibration | Supported |
| Main unit | Approx. 91 x 160 x 46.5 mm |
| Stand | Approx. 59.5 x 125 x 90 mm |
Questions
Which tips does it use?
T12 series tips.
How fast does it heat?
About 2 to 3 seconds.
Can I calibrate it?
Yes.
