2UUL PW05 PCB Power Cable for iPhone 8 to 17 Pro Max

A shop that sees everything from an iPhone 8 to the latest Pro Max needs a power lead that keeps up. The 2UUL PW05 uses eight PCB-style connectors, each marked with its models, to power boards from the iPhone 8 through the iPhone 17 Pro Max.

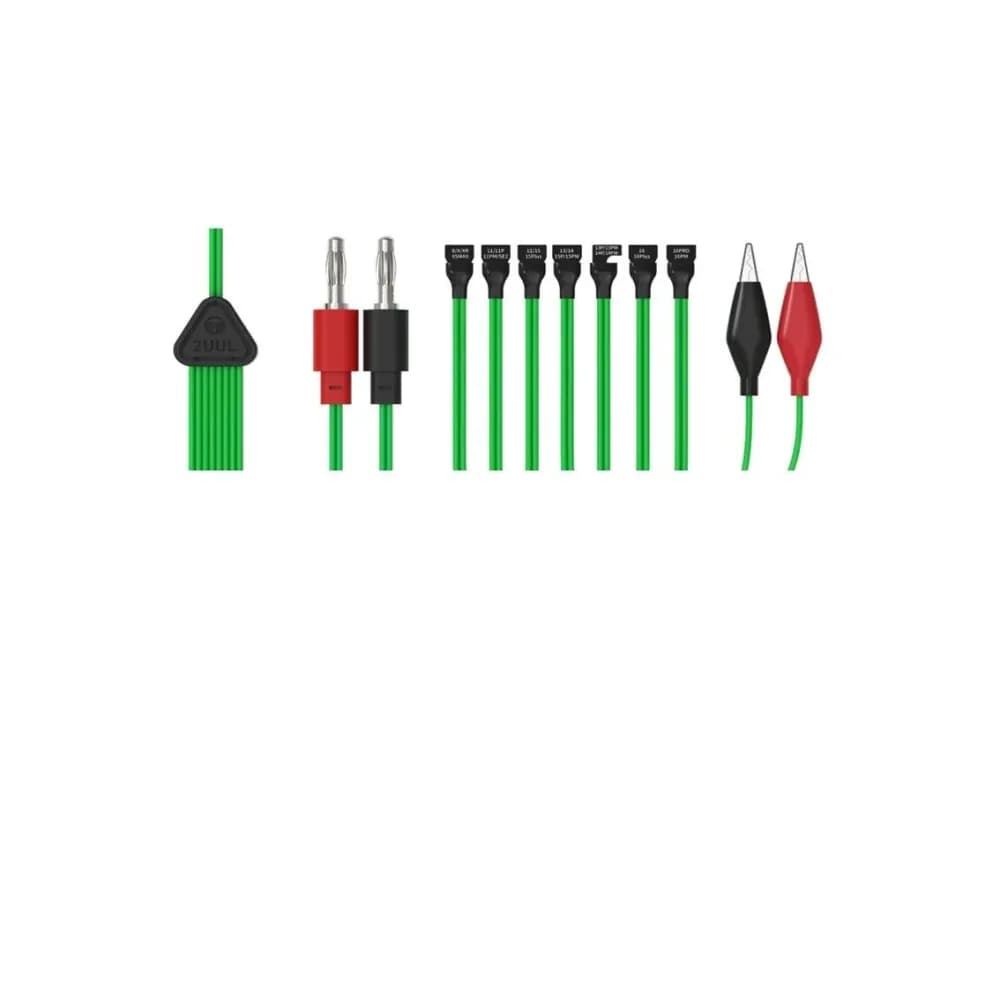

The PW05 is an 8-in-1 PCB power boot cable from 2UUL. It connects to a DC bench supply and boots logic boards without a battery for diagnostics and current testing. It has a 1 m cable with a double pure copper core, TPE insulation and a pair of red and black alligator clips.

When the PW05 is the lead to use

• A dead iPhone that won't boot on its own battery.

• Current testing to locate a short.

• Steady power during soldering and component replacement.

• Screen, touch and system tests with the battery removed.

Practical notes

The listing names models from the iPhone 8 to the 17 series, including the 17 Pro Max. Match the marked connector to the model, set the supply voltage to the battery's rating and start with a low current limit.

PCB connectors are stiffer than flex, so press them straight onto the socket rather than rocking them. If you mostly work on iPhone 12 to 16 models and want push-button booting, the 2UUL PW09 is an alternative.
