XZZ Motherboard Layered Test Fixture for iPhone 15 Series

Board faults on an iPhone 15 often hide between the layers, and the only way to be sure is to test each one with a reliable temporary connection. The XZZ 15 delamination test frame provides that for the whole iPhone 15 range.

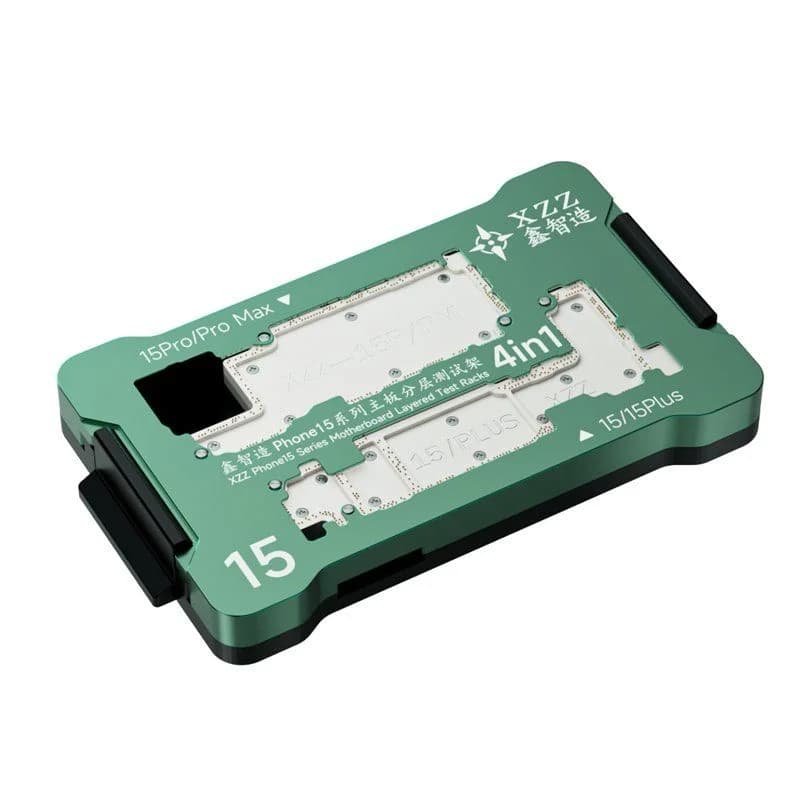

This layered test frame from XZZ (Xinzhizao) is listed for the iPhone 15, 15 Plus, 15 Pro and 15 Pro Max. It has a flame-retardant, high-temperature and corrosion-resistant needle board with gold-plated spring probes, in a barley green finish. It measures 118 × 68 × 16 mm and weighs about 157 g.

When the frame helps

• An iPhone 15 board that won't boot after a drop or water damage.

• Finding which layer holds a short.

• Testing a layer repair before re-soldering.

• Moving a working layer onto a donor board.

Check the version

The listing describes the type as 'National / American Version'. US iPhone 15 models have no SIM tray, which changes the board design in that area, so confirm from the photos or with us that the frame fits your board's region before relying on it.

Keep the needle board clean and inspect the probes regularly; one damaged probe can make a healthy layer look faulty.
