Samsung Galaxy S20+ OLED Screen with Frame and Tools Kit
Samsung · SKU SM01057-51452543992119 · Fits 2 models
$53.85
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $53.85 | ||
| $51.16 | −5% | |
| $48.47 | −10% |
Selected SKU SM01057-51452543992119
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- Shipping & returns
- Ask about fit before ordering
Shipping weight 0.18 kg
Compatible with 2 models
Match the model number printed on the device (Settings → About, or on the back) before ordering.
Details
A Galaxy S20+ that goes black after a drop isn't always a dead screen. If the phone still vibrates, plays sounds and shows up when plugged into a computer, the display is the likely culprit. If it does none of those, the problem is deeper. Running through that check first saves ordering the wrong part.

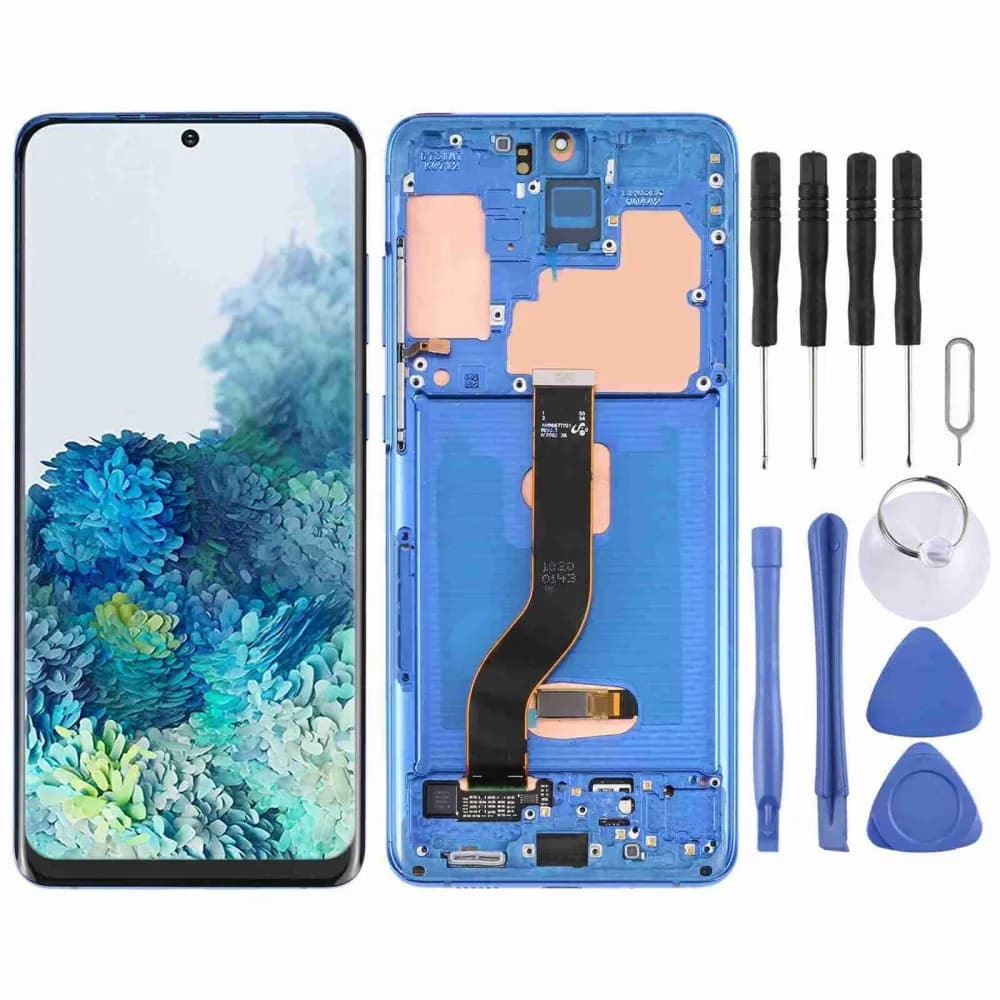

Here the aftermarket OLED panel arrives already fitted in a new frame, and a repair tool kit is included. Frame colors are Phantom Black, White, Gray, Sky Blue and Pink, and the listing gives the panel size as 6.67 inches.
Symptoms that point to the screen
A black screen while calls, alarms and vibrations still work.
Cracked glass, often along the curved edges.
A green or pink line that appeared after a knock and doesn't go away.
Touch that is dead in one area or registers phantom taps.
The internal parts move from the old phone into the new frame. The battery is glued down, so plan for adhesive remover or a new battery. Test display, touch and fingerprint before closing, and don't fold the display flex sharply.
Once the right fault is confirmed, a screen with frame is a tidy repair that makes the S20+ look and feel new again.
Specifications
| Compatible devices | Galaxy S20+ |
|---|---|
| Model numbers | SM-G985, SM-G985F, SM-G985F/DS, SM-G986, SM-G986F, SM-G986F/DS, SM-G986U, SM-G986U1, SM-G9860, SM-G986B/DS, SM-G986N, SM-G986B, SM-G986W |
| Panel size (listing) | 6.67 in |
| Part type | OLED screen with frame |
| Quality | Aftermarket |
| In-display fingerprint | Supported (supplier specification) |
| Included | Screen with frame, repair tool kit |
| Frame color options | Phantom Black, White, Gray, Sky Blue, Pink |
Questions
Does it fit the S20 or S20 Ultra?
No. It's listed for the Galaxy S20+ (SM-G985 and SM-G986 models) only.
Does the in-display fingerprint sensor work with this screen?
The supplier states that the in-display fingerprint sensor is supported. After the repair, delete the old fingerprints and register them again.
Should I test the screen before installing it?
Yes. Connect it to the phone and check display, touch and fingerprint before removing protective film or gluing anything. Don't bend the display flex more than 90 degrees, as a sharp bend can leave the screen black.
Is this a genuine Samsung screen?
No. It's an aftermarket OLED screen with frame made to fit the Galaxy S20+.
