Samsung Galaxy S23 Ultra OLED Screen with Frame, 120Hz

The S23 Ultra's 6.8-inch screen is large, curved at the edges and works with the built-in S Pen, which makes it costly to replace with a Samsung part. This aftermarket OLED comes already fitted to a frame, so a shop can transfer the internals instead of separating a glued screen.

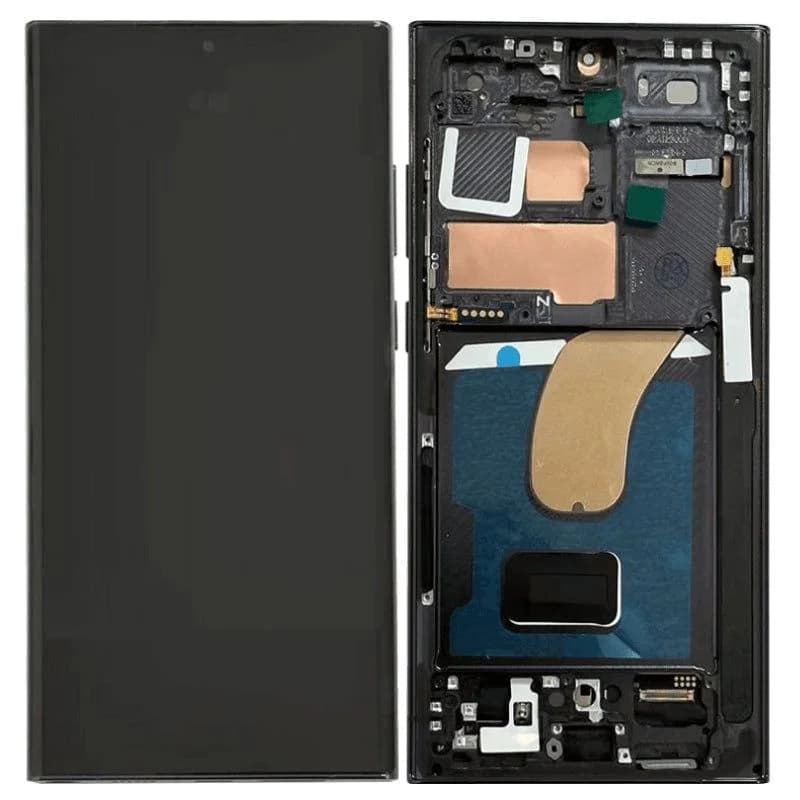

According to the listing, it's a new aftermarket OLED screen assembly with frame for the Galaxy S23 Ultra, with a 120Hz refresh rate and touch built in. The frame is offered in Phantom Black, Sky Blue, Graphite, Green, Red, Cream, Lavender and Lime.

Faults it addresses

• Cracked or crushed display glass.

• A black screen that won't wake.

• Touch that's dead or misbehaving.

• Lines, flicker or patches of colour.

Bench notes

Move the battery, main board, sub-board, cameras and S Pen parts into the new frame. The battery is glued down, so use a proper adhesive remover and keep it flat.

When the phone is back together, check touch along the curved sides, S Pen input across the screen, the fingerprint reader and the 120Hz setting. Aftermarket panels can behave differently with in-display fingerprint readers, so test it several times.
