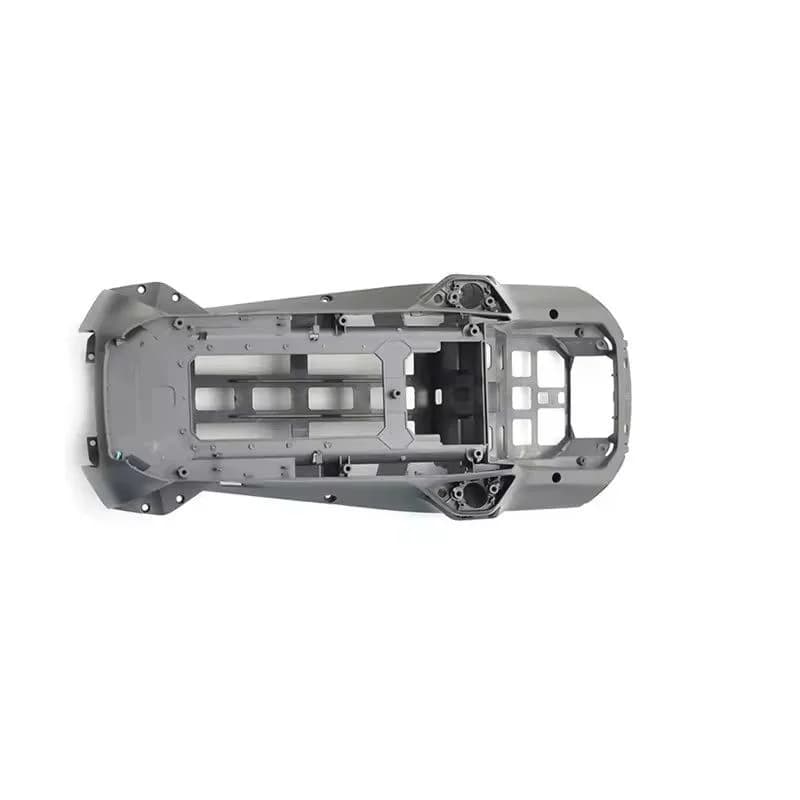

DJI Mavic 3 Series Middle Body Frame

$60.98

per unit

Volume pricing
Quantity	Unit price	Saving
	$60.98
	$57.93	−5%
	$54.88	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.2 kg

Compatible with 6 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Details

The middle body frame is the Mavic 3's chassis. It holds the motherboard, wiring and key modules in alignment and provides mounting for the arms. When it cracks or bends, the whole airframe can be affected.

This middle body frame is listed for the DJI Mavic 3, Mavic 3 Classic, Mavic 3 Cine, Mavic 3 Pro, Mavic 3T and Mavic 3E. No maker is named; it's sold as aftermarket.

When the Mavic 3 middle frame needs replacing

A cracked or bent frame after a crash.
Arms that don't sit straight because of damaged mounts.
Stripped or broken screw posts.
Internal boards that no longer align.

A full teardown job

Replacing the frame means moving the motherboard, arms, wiring and modules. Photograph each stage and label screws by location. A related Mavic 3 series shell listing has a middle option; compare the photos to see whether it's the same part.

After reassembly, check that the arms fold and lock, the gimbal moves freely and every sensor reports normally. Run the IMU and compass calibrations the app asks for, and test in a low hover before any normal flight.

Specifications

Compatible devices	DJI Mavic 3, DJI Mavic 3 Classic, DJI Mavic 3 Cine, DJI Mavic 3 Pro, DJI Mavic 3T, DJI Mavic 3E
Part type	Middle body frame
Quality	Aftermarket (DJI origin not stated)
