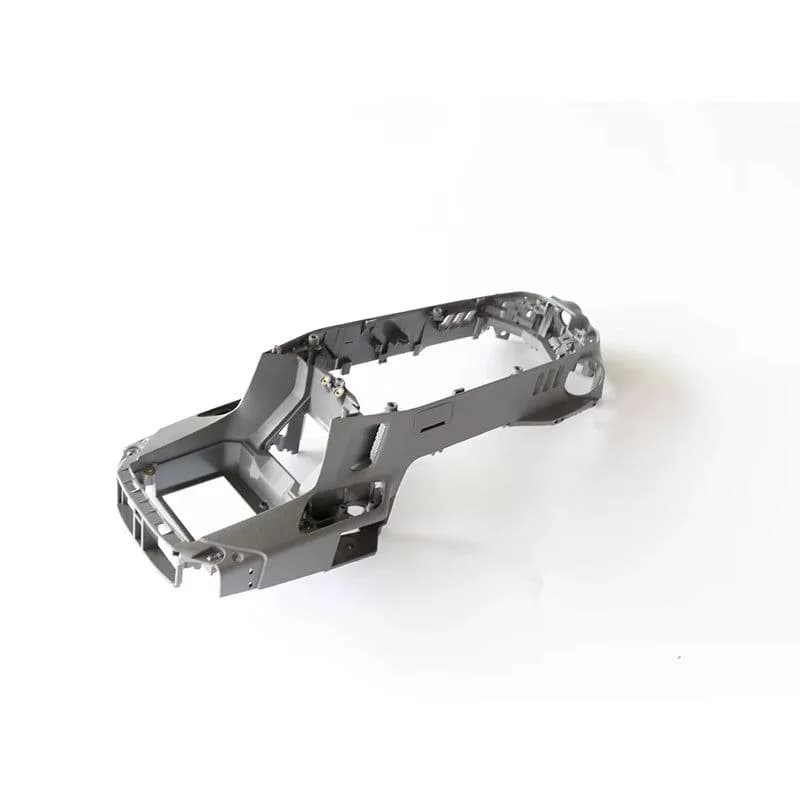

DJI Mavic 2 Pro / Zoom Middle Frame Shell

$90.98

per unit

Volume pricing
Quantity	Unit price	Saving
	$90.98
	$86.43	−5%
	$81.88	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.3 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

DJI Mavic 2 Pro

Details

The middle frame holds a Mavic 2 Pro or Mavic 2 Zoom together, with the internal modules and arms mounted to it. It's an expensive part, so confirm that the frame itself is cracked or deformed before committing to a full teardown.

This middle frame shell is listed for the DJI Mavic 2 Pro and Mavic 2 Zoom. No maker is named; it's sold as aftermarket.

When the Mavic 2 middle frame needs replacing

A cracked or deformed frame after a crash.
Damaged arm mounting points.
Broken screw posts that won't hold.
Internal modules that no longer align.

Weigh the cost

Moving every internal part into a new frame is a long job, and the cost can approach that of a used drone in good condition. Check whether only the outer shells are damaged; front and top shells are much cheaper.

If you go ahead, photograph each stage, label screws by position and use ESD protection. After reassembly, calibrate the IMU and compass, check the gimbal and sensors, and hover low before normal flight. Keep the old frame until the drone has flown well, in case any small part needs to be retrieved.
