DJI Air 2 USB Interface Board

1 / 3

Part

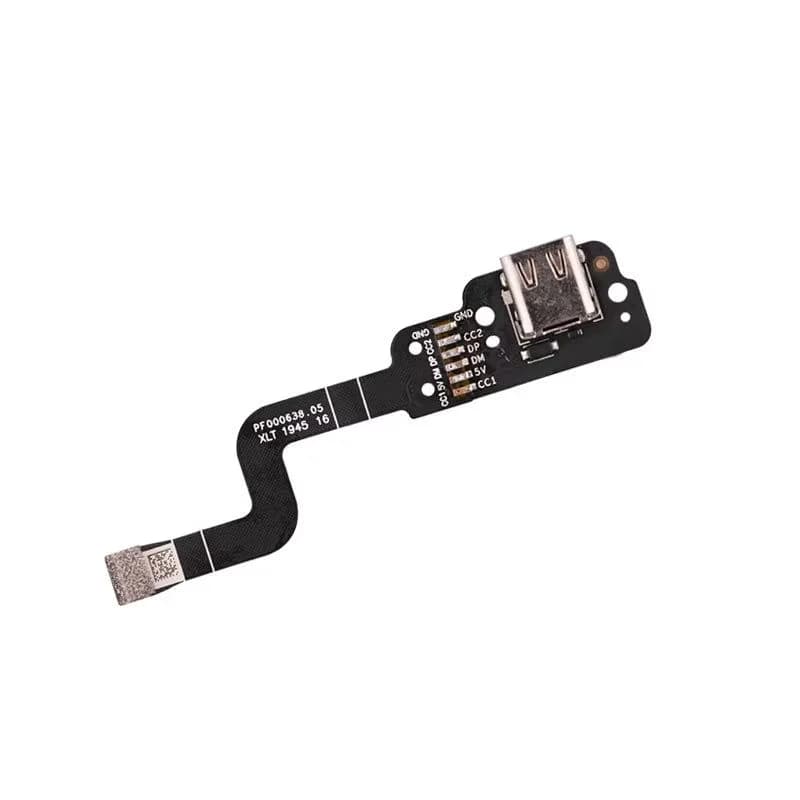

DJI Air 2 USB Interface Board

DJI · SKU DJ12105 · Fits 1 model

$17.09

per unit
Volume pricing
QuantityUnit priceSaving
$17.09
$16.24−5%
$15.38−10%

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Details

Plugging a cable into a drone hundreds of times, often in a hurry and sometimes in the dark at a launch site, wears out the port eventually. On the Mavic Air 2 the USB connector sits on its own small interface board, so a loose or damaged port can be fixed without touching the mainboard.

This USB interface board is listed for the DJI Mavic Air 2, with no maker named, so it's an aftermarket part. It carries the connection used for data transfer, firmware updates and diagnostics with a computer.

Signs the Air 2 USB board is worn

  • The cable has to be held at an angle before the computer sees the drone.

  • Firmware updates or file transfers drop out partway.

  • The port is loose, bent or has visible damage.

  • Corrosion around the connector after flying in damp air.

Rule out the easy causes

Try a second cable and another USB port on the computer, and clear lint from the connector with a wooden toothpick. If the problem moves with the cable, the board is fine. If it stays, replace the board, keeping its ribbon connector clean and seated fully before closing.

A fresh interface board makes updates and file transfers dependable again, which matters every time DJI releases new firmware.

Specifications

Compatible devicesDJI Mavic Air 2 (listed as DJI Air 2)
Part typeUSB interface board
Used forData transfer, firmware updates, diagnostics (per listing)
QualityAftermarket (DJI origin not stated)

Questions

Is this a DJI-made board?

The listing doesn't state DJI origin, so we sell it as an aftermarket board.

Does this board handle charging?

The listing mentions charging recognition problems, but it doesn't describe the board's role in charging, so check your fault against data and update symptoms first.

How can I tell if it's the cable?

Try another cable and computer port. If the fault follows the cable, the board isn't the problem.
