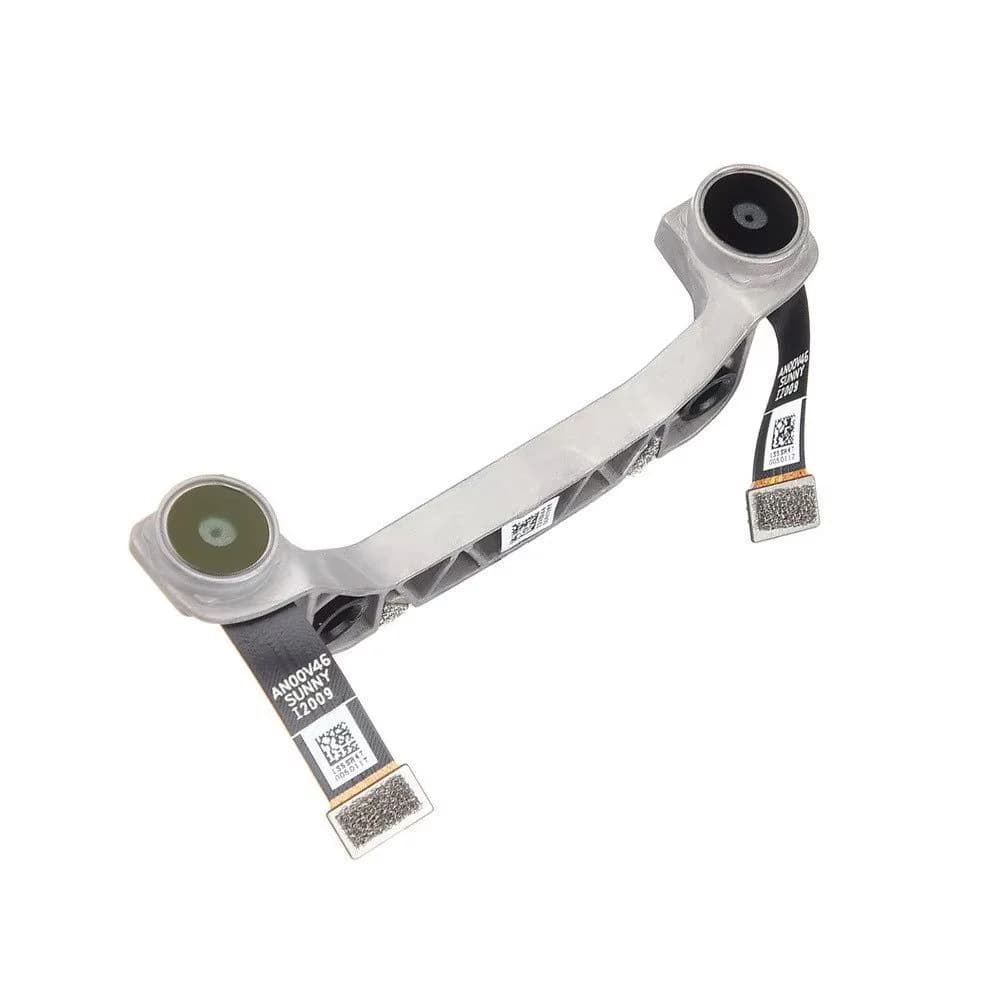

DJI Air 2 Front Vision Sensor Assembly

1 / 5

Part

DJI Air 2 Front Vision Sensor Assembly

DJI · SKU DJ12093 · Fits 1 model

$35.70

per unit
Volume pricing
QuantityUnit priceSaving
$35.70
$33.92−5%
$32.13−10%

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Details

On the bench, a Mavic Air 2 with forward obstacle warnings is usually a crash survivor with a scuffed nose. The front vision assembly sits right at the point of impact, so its lenses and cameras are often the first parts to suffer.

This front vision sensor assembly is listed for the DJI Mavic Air 2. Because the listing doesn't name its maker, it's sold as aftermarket.

Bench order for Air 2 forward-vision faults

  1. Read the exact error in the app and note whether it appears at startup or only in flight.

  2. Clean both front lenses and look for cracks or fogging.

  3. Run the vision calibration in DJI's desktop software.

  4. Open the nose and inspect the ribbon cable and its connector.

  5. Replace the assembly only if the error survives all of that.

After fitting, calibrate the vision system again and test forward obstacle sensing at low speed in open ground. Keep the original assembly until the new one has passed a few flights.

Followed in that order, the repair fixes the fault that's actually there rather than the one assumed.

Specifications

Compatible devicesDJI Mavic Air 2 (listed as DJI Air 2)
Part typeFront vision sensor assembly
Used forForward obstacle detection, visual positioning (per listing)
QualityAftermarket (DJI origin not stated)

Questions

Is this a DJI-made sensor?

The listing doesn't state DJI origin, so we sell it as an aftermarket sensor.

Do I need to calibrate it?

Yes, plan to calibrate the vision system after fitting.

Can a cable cause the same error?

Yes. A damaged ribbon cable or connector can trigger vision errors, so inspect it before replacing the assembly.
