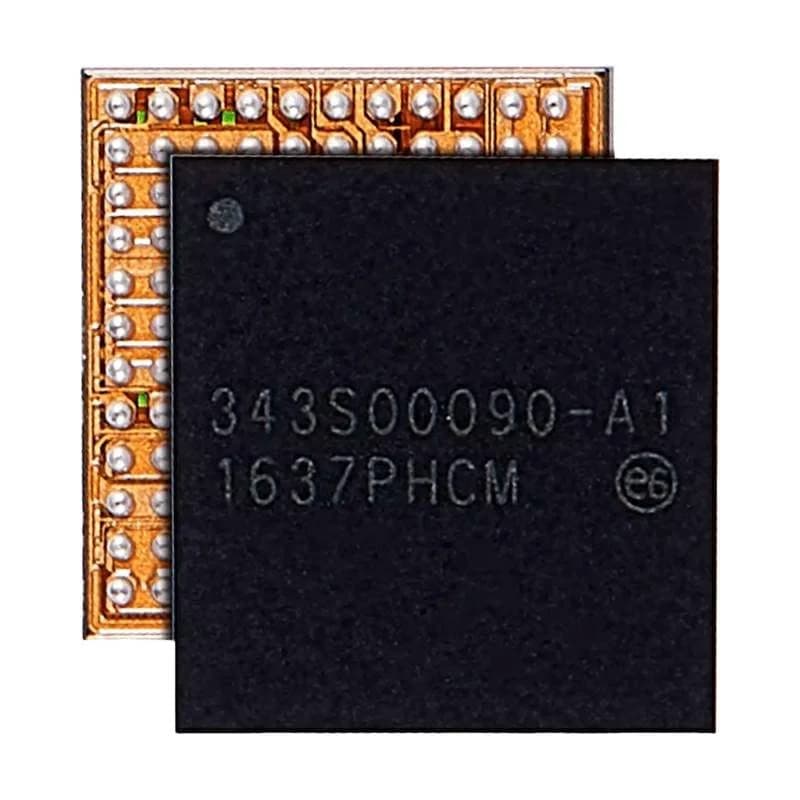

343S00090 Power Management IC for iPad Pro 12.9 2nd Gen (2017)

Name: 343S00090 Power Management IC for iPad Pro 12.9 2nd Gen (2017)
Brand: Apple
SKU: IP71120
Price: 6.63 USD

Apple · SKU IP71120

$6.63

per unit

Volume pricing
Quantity	Unit price	Saving
	$6.63
	$6.30	−5%
	$5.97	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.01 kg

Details

The 2017 iPad Pro 12.9-inch has more than one power management chip, and this store lists two different part numbers with the same 132-pin count for it: 343S00090 and 343S00117. That's why the marking on your board is the deciding factor when you order.

This listing sells the 343S00090 power management IC for the iPad Pro 12.9-inch 2nd gen (A1670, A1671). The listing doesn't give its position or which rails it handles.

When it may be at fault

No boot with the battery and main PMU checked.
Display or touch faults that remain with known-good screen parts.
A short on one of its rails.
Damage around the chip after liquid.

Ordering tip

Read the number on the chip on your board and make sure it says 343S00090 before buying, since the 343S00117 is a different part. Use your board view to find which rails it supplies and check them first.

Fit with a preheater and fresh flux, then test boot, display and touch before reassembly. Once they all work, the iPad is ready for a final check.
