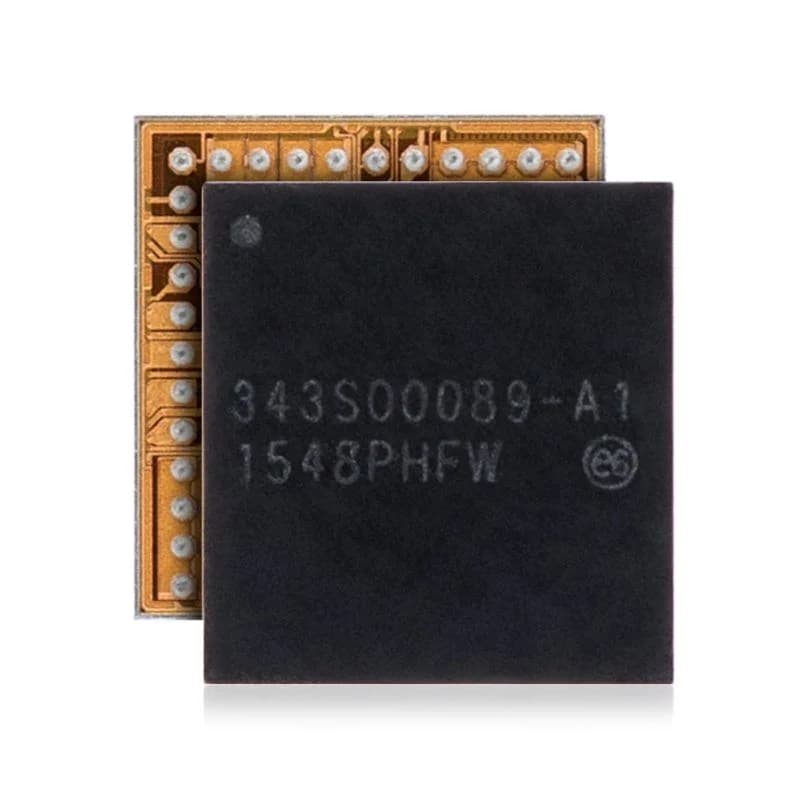

343S00089-A1 Charging IC for iPad Pro 9.7 (2016), 132 Pin

Name: 343S00089-A1 Charging IC for iPad Pro 9.7 (2016), 132 Pin
Brand: Apple
SKU: IP71019
Price: 5.52 USD

Apple · SKU IP71019 · Fits 1 model

$5.52

per unit

Volume pricing
Quantity	Unit price	Saving
	$5.52
	$5.24	−5%
	$4.97	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.01 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

iPad Pro 9.7-inchA1673, A1674, A1675

Details

The 2016 iPad Pro 9.7 is a popular refurb unit, and a charging fault is often the only thing standing between a dead tablet and a resale. The 343S00089-A1 is a 132-pin charging IC listed for the A1673, A1674 and A1675.

The listing doesn't give a board position.

Charging problems this chip can cause

No charging.
Unstable charging that cuts out.
A charging icon with no actual charge.
Slow charging on a good adapter.

Before opening it

Swap the cable and charger, clean the Lightning port and test a known-good port flex. A deeply discharged battery can look like a dead charging IC, so leave it on a charger for a while first.

Lift the screen with gentle heat, disconnect the battery and use the board view to find the chip. Preheat, lift it and fit the new one on fresh flux. Test charging from a low battery before refitting the screen. Leave it on the charger long enough to watch the percentage climb, and connect it to a computer as well. Once you're happy, fit fresh adhesive so the display sits flat and stays sealed against dust.
