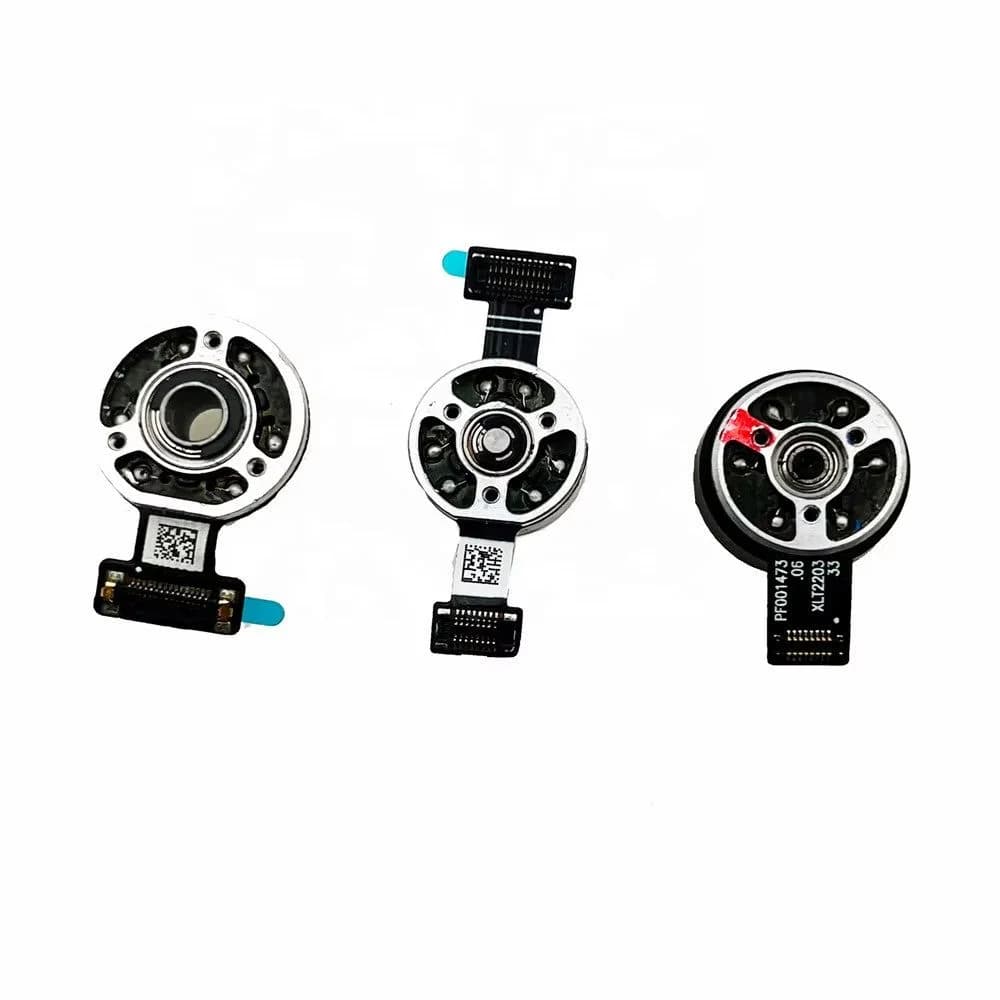

DJI Mini 3 Pro Gimbal Motor: Roll, Pitch or Yaw

The Mini 3 Pro gimbal steadies its camera with three motors: roll keeps the horizon level, pitch tilts the camera up and down, and yaw turns it side to side. A crash rarely damages all three, so this listing sells each one separately.

Choose Pitch Motor, Roll Motor or Yaw Motor. The listing names no maker and mentions original specifications, so each is sold as aftermarket.

Which Mini 3 Pro motor has failed?

• Roll Motor: a tilted or wobbling horizon after calibration.

• Pitch Motor: the camera is stuck pointing down, tilts in jerks or sags in flight.

• Yaw Motor: sideways drift or a gimbal that won't turn left and right.

Before ordering

Calibrate the gimbal and inspect the brackets and flex cable first, since bends and cable damage mimic motor faults. With the drone off, rotate each axis gently by hand; roughness on one axis points to its motor.

Fit the motor over a tray and protect the thin flex cables. Calibrate afterward and check all three axes, including the rotation into vertical mode. Prices vary slightly by axis, with roll the lowest and yaw the highest.
