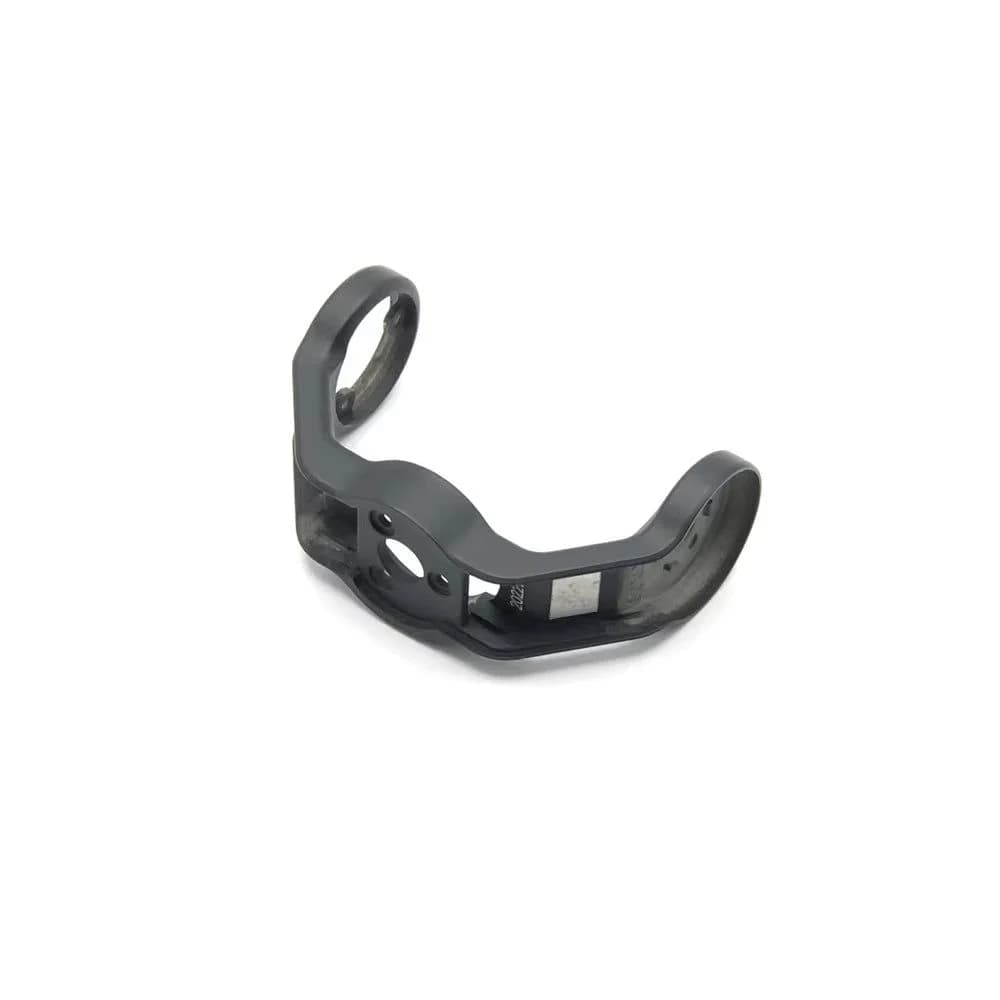

DJI Mini 3 Gimbal Roll Arm Lower Bracket

$12.90

per unit

Volume pricing
Quantity	Unit price	Saving
	$12.90
	$12.26	−5%
	$11.61	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

DJI Mini 3

Details

On the bench, a Mini 3 with a leaning horizon and no motor fault often has a bent roll arm lower bracket. This bracket supports the roll (R-axis) arm, and even a slight bend after a crash can tilt the camera.

This gimbal roll arm R-axis lower bracket is listed for the DJI Mini 3. The listing's mention of original specifications doesn't establish DJI origin, and no maker is named, so it's aftermarket.

Signs the Mini 3 roll bracket is damaged

A horizon that stays tilted after gimbal calibration.
A visibly bent or cracked bracket.
Roll motor strain or gimbal errors after an impact.
Camera play on the roll axis.

Bench approach

Compare the old and new brackets side by side to confirm the bend. Transfer the roll motor carefully, keeping the camera lens covered and the thin flex cables free of strain.

Calibrate the gimbal on a level surface and test in both horizontal and vertical orientations, since the Mini 3 camera rotates for vertical shooting. A straight bracket usually brings the horizon back without replacing the roll motor.
