DJI Mavic 3 Pro Gimbal Roll Arm Lower Bracket

1 / 6

Part

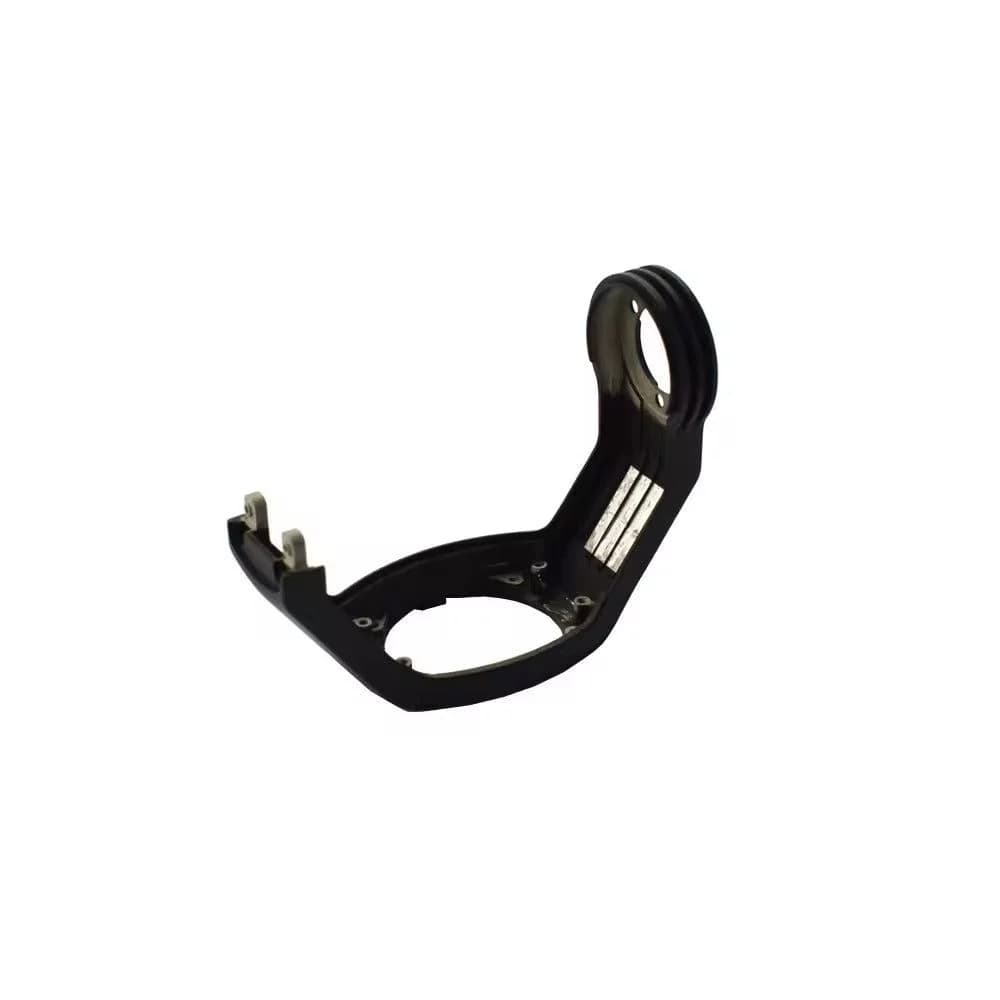

DJI Mavic 3 Pro Gimbal Roll Arm Lower Bracket

DJI · SKU DJ13055 · Fits 1 model

$12.90

per unit
Volume pricing
QuantityUnit priceSaving
$12.90
$12.26−5%
$11.61−10%

Shipping weight 0.2 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Details

A Mavic 3 Pro can come through a tip-over on landing with no visible damage, yet every clip afterward leans slightly to one side. When calibration doesn't help, check for a bent lower bracket on the roll arm before buying a roll motor, which costs far more than this part.

This gimbal roll arm lower bracket is listed for the DJI Mavic 3 Pro. It's an aftermarket part, as no maker is named.

When the Mavic 3 Pro roll bracket needs replacing

  • A tilted horizon that calibration can't correct.

  • A visibly bent or cracked bracket.

  • Roll motor strain or errors after an impact.

Fitting the bracket

Compare the old bracket with the new one; even slight bends show up side by side. Transfer the roll motor carefully and protect the flex cables that run along the arm.

Calibrate the gimbal on a level surface afterward and record footage from all three cameras to check the horizon. Replacing a bent bracket is often all a leaning Mavic 3 Pro needs.

Specifications

Compatible devicesDJI Mavic 3 Pro
Part typeGimbal roll arm lower bracket
QualityAftermarket (DJI origin not stated)

Questions

Is this a DJI-made bracket?

The listing doesn't state DJI origin, so we sell it as an aftermarket bracket.

Is the roll motor included?

No. It's the bracket only.

Can a bent bracket cause a tilted horizon?

Yes. It's a common cause after a crash.
